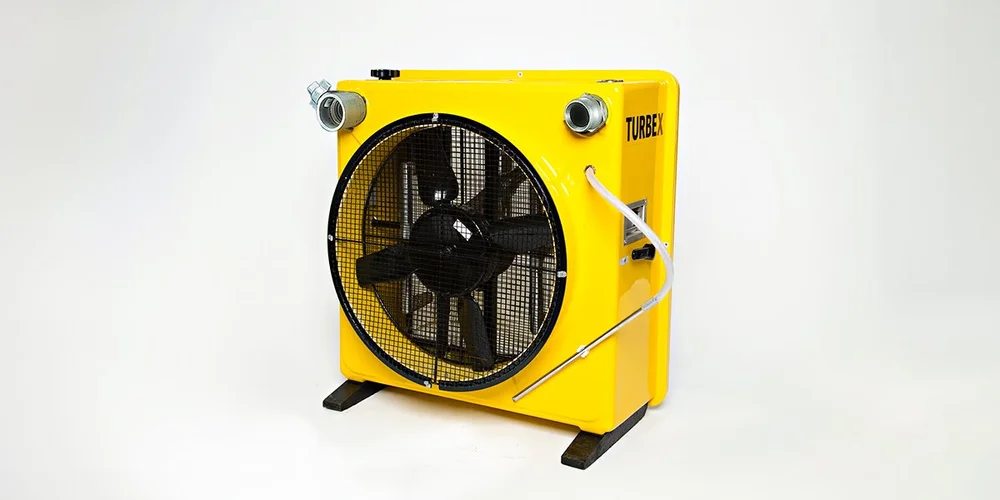

HI-COMBAT™ Turbex
High-capacity high-expansion foam generator — floods large spaces with foam, then clears the smoke.
The Angus Fire HI-COMBAT™ Turbex is a water-turbine driven high-expansion (HEX) foam generator for large-volume flooding. It produces up to 200 m³ of foam per minute to quickly fill large or inaccessible spaces, using little water and so causing minimal water damage. The same unit also handles rapid smoke extraction, positive pressure ventilation and foam removal once the fire is out. Hexfire supplies the Turbex, its ducting and matching foam concentrate, with expert support across Central & Eastern Europe.
At a glance
How it works
The Turbex needs no engine and no electricity. Water pressure drives an enclosed, maintenance-free turbine, which turns an aerofoil fan. The built-in inductor draws in high-expansion foam concentrate at typically 4.5 l/min, and the forced air turns the foam solution into foam on the foam-making net. A built-in filter protects the turbine and inductor from solid particles in the water.
Because the air is forced, the generator keeps working against high back pressure, and the by-pass valve lets you trade output for expansion ratio. Use about 500:1 for flammable-liquid fires and general applications. Use 1,000–1,100:1 only for back-pressure situations and Class A materials such as packaging plants, where minimal wetting is wanted.
In smoke extraction mode, with the special ducting, no foam concentrate is needed.
Where the Turbex is used
Buildings and storage — basements, cellars, roof voids, cable ducts, warehouses, packaging plants and chemical stores.
Tunnels and mines.
Ships — engine rooms and cargo holds.
Industry — incineration plants and flammable liquid spills.
Outdoors — fuel spillages.
Typical foam performance
| Inlet pressure | By-pass | Water flow | Foam output | Expansion ratio |
|---|---|---|---|---|
| 4 bar | closed | 180 l/min | 85 m³/min | 500–700:1 |
| 6 bar | closed | 225 l/min | 115 m³/min | 500–700:1 |
| 7 bar | closed | 245 l/min | 135 m³/min | 500–700:1 |
| 8 bar | closed | 270 l/min | 150 m³/min | 500–700:1 |
| 10 bar | closed | 290 l/min | 190 m³/min | 500–700:1 |
| 4 bar | open | 195 l/min (of which 70 by-pass) | 95 m³/min | 800–1,100:1 |
| 6 bar | open | 245 l/min (90 by-pass) | 135 m³/min | 800–1,100:1 |
| 7 bar | open | 270 l/min (100 by-pass) | 155 m³/min | 800–1,100:1 |
| 8 bar | open | 290 l/min (105 by-pass) | 175 m³/min | 800–1,100:1 |
| 10 bar | open | 315 l/min (115 by-pass) | 200 m³/min | 800–1,100:1 |
Typical values. Performance may vary with ambient temperature; expansion ratio depends on operating conditions.
Key technical data
| Property | Value |
|---|---|
| Type | Portable high-expansion foam generator, water-turbine driven |
| Maximum foam output | Up to 200 m³/min (10 bar, by-pass open) |
| Smoke extraction | 285 m³/min at 7 bar (with smoke extraction ducting) |
| Operating pressure | 4–10 bar |
| Foam concentrate consumption | Typically 4.5 l/min |
| Connections | 2″ BSP inlet and by-pass outlet (A102071); 2½″ BS Instantaneous version on request |
| Dimensions (W × H × D) | approx. 902 × 927 × 495 mm |
| Weight | Net 55 kg (shipped on a pallet 120 × 94 × 100 cm, approx. 90 kg) |
| Materials | UV-stabilised GRP body, thermoplastic-coated aluminium alloy fan, gunmetal turbine and inductor, woven nylon/polyester foam net |
| Quality | Manufactured in an ISO 9001 accredited facility |
Everything you need for a complete Turbex set
| Item | What it does | Status |
|---|---|---|
| HI-COMBAT™ Turbex (A102071) | High-expansion foam generator / smoke extractor with built-in inductor and pick-up tube, foam-making net, retaining strap and handles | Standard set |
| Foam ducting, 30 m (AE00767) | Delivers foam over a distance, for example into a cellar | Optional |
| Smoke extraction ducting, 7.6 m × Ø 685 mm (AE01003) | Yellow, nylon-reinforced, for smoke extraction at up to 285 m³/min and foam removal | Optional |
| Complete set (A102011) | Turbex supplied with 30 m foam ducting and 7.6 m smoke ducting | Available as one part number |
| 2″ BSP – Storz adapters | Connect the generator to your hoses (Storz B / C) | Required for Storz-equipped brigades. Ask us and we will help you specify them. |
| High-expansion foam concentrate | Drawn in by the built-in pick-up tube | Any concentrate suitable for high expansion, including fluorine-free. Angus recommends Expandol 3%. Ask us which one fits your application. |
| Hoses and water supply | Approx. 180–315 l/min at 4–10 bar | Usually already on the fire vehicle |
Delivery and ordering
Mini Turbex vs Turbex
| HI-COMBAT™ Mini Turbex | HI-COMBAT™ Turbex | |
|---|---|---|
| Max. foam output | 100 m³/min | 200 m³/min |
| Expansion ratio | 260–360:1 | 500–1,100:1 |
| Weight | 16 kg | 55 kg |
| Typical use | First attack | Large-volume flooding |
Related products
HI-COMBAT™ Mini Turbex — compact, 16 kg, up to 100 m³/min, for first-attack deployment.
HI-Expansion Fixed Turbex — permanently installed high-expansion system.
Fixed LNG Turbex Systems — for LNG applications.
Frequently asked questions
Does the Turbex need an engine or electricity?
No. The fan is driven by the water pressure from your pump or hydrant.
Which expansion ratio should I use?
About 500:1 for flammable-liquid fires and general use. 1,000–1,100:1 only for Class A materials and back-pressure situations.
Can it remove smoke?
Yes, up to 285 m³/min at 7 bar with the smoke extraction ducting. It can also be used to remove foam after the incident.
Will it fit our Storz hoses?
The Turbex (A102071) has a 2″ BSP inlet. Adapters to your Storz size are needed – they are a standard fire-equipment item and we are happy to help you specify them.
Which foam concentrate can I use?
Any foam concentrate capable of high expansion works, including fluorine-free concentrates and those from other manufacturers. Angus recommends Expandol 3%.
How long does delivery take?
Typically 4–6 weeks (up to 8) from order confirmation, plus transport.
Backed by expertise across the region
As Angus Fire and AISG's distribution partner for Central and Eastern Europe, Hexfire helps you put together the complete Turbex set: generator, ducting, adapters and the right foam concentrate. We support you with expert advice from first enquiry through to delivery.
